178964-5
Manufacturer:
TE Connectivity
Mfr.Part #:
178964-5
Datasheet:
Description:

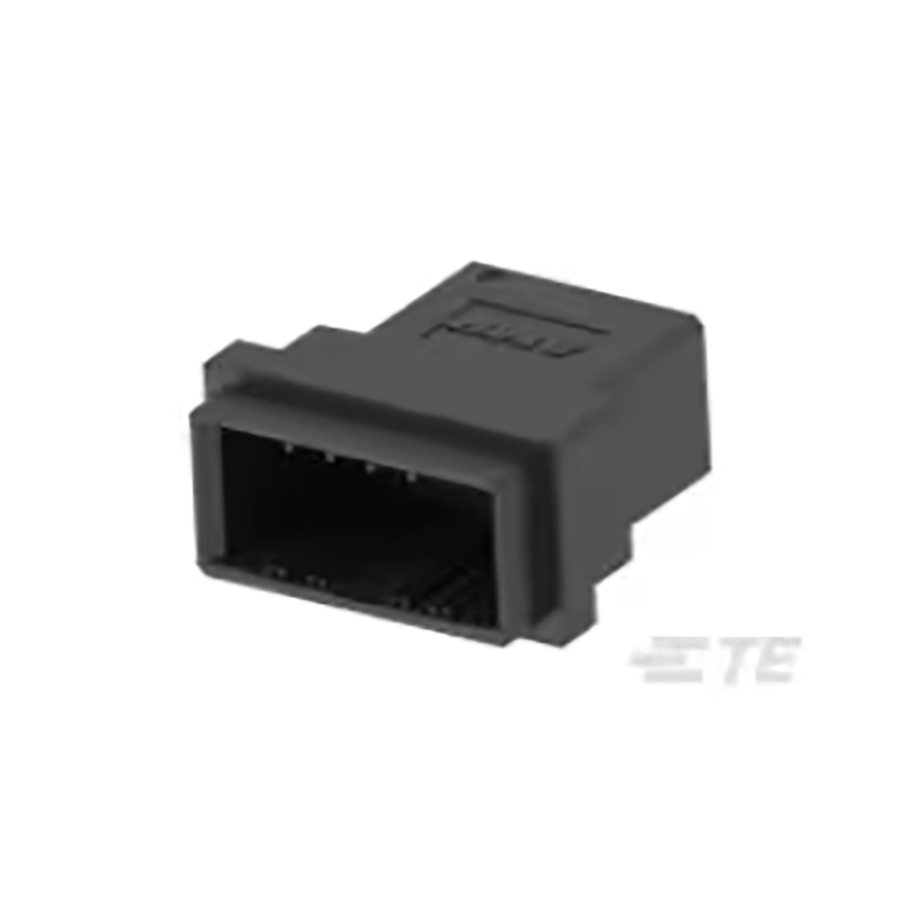

Headers and Wire Housings Cable, Free Hanging Plug, Tab Number of Positions:10 Pitch:3.80746 mm
| Parameter | Value |
|---|---|
| Length | 33.1724 mm |
| Width | 17.7546 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 33.6 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 33.6 mm |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Pitch | 3.80746 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 10 |
| ELV | Compliant |
| Body Material | Glass, PET, Polyester |
| Connector Type | Plug, Tab |
| Wire/Cable Gauge | 16 AWG |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 5.08 mm |
| Housing Material | Nylon |
| Connector System | Wire-to-Wire |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Black |
| VDE Tested | No |
| Preloaded | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
Stock: 154
Distributors
pcbx
pcbxUnit Price$0.78614
Ext.Price$0.78614
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.78614 | $0.78614 |
| 10 | $0.64262 | $6.42620 |
| 25 | $0.60120 | $15.03000 |
| 50 | $0.56245 | $28.12250 |
| 100 | $0.52620 | $52.62000 |
| 300 | $0.49229 | $147.68700 |
| 500 | $0.46056 | $230.28000 |
| 1000 | $0.43796 | $437.96000 |
